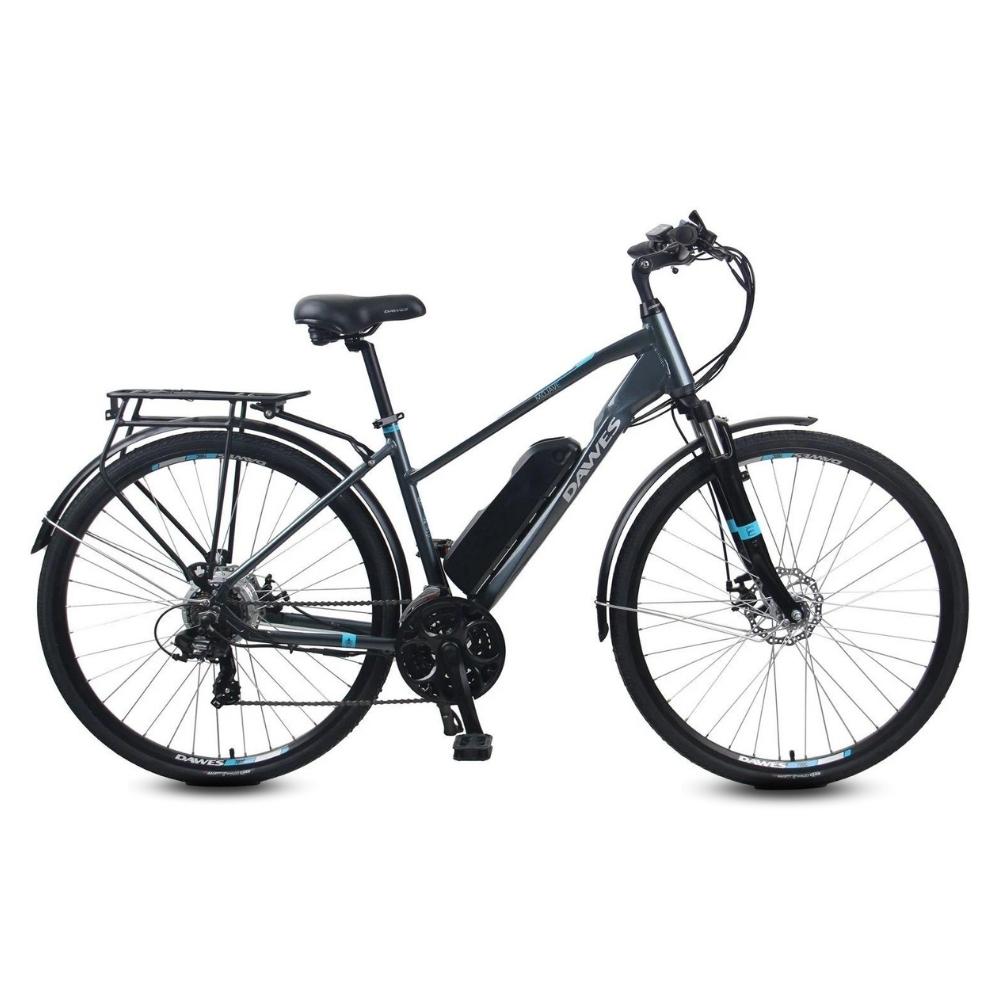

The Dawes Mojave has long been one of the most popular models in our standard trekking range. So with the boom in electric bikes, we thought what better model to electrify!
Built around a unisex frame design we hope this one bike will cater for a wide variety of cyclists. Couple that with accessories which come as standard including full length mudguards, rear carrier and big-foot propstand and the all new Dawes Mojav-E really is a jack of all trades. Ideal for commuting to work, carry your things on the back, or just going for a spin in the countryside with a picnic, this 250W electric bike takes the brunt of the work so you can either ride much further than normal, or make that quick journey without arriving all sweaty.
The 36V 10Ah battery neatly connects to the downtube, keeping it out of the way, and it can easily be disconnected by key if you’d rather charge it up inside your home. The 250W rear hub motor smoothly assists you up to 25kph and offers a range of approx 45km per charge. We’ve also fitted easy to use, reliable Shimano 21spd gears and powerful mechanical disc brakes to help bring you to a stop.
| Frame Fork | |
| Sizes: | 700C Wheel, 18″ Alloy Frame |
| Frame: | Dawes Unisex 6061 Alloy Hybrid Frame |
| Fork: | Suspension fork with disc mounts |
| Steering | |
| Handlebar: | Lo-Rise bar, 620mm wide |
| Stem: | Adjustable Quill Stem, 90mm extension |
| Grips: | Black Comfort Grips |
| Transmission | |
| Shifters: | Shimano SL-TX30 Thumbshifter 7x3spd |
| Front Derailleur: | Shimano FD-TY510 3spd |
| Rear Derailleur; | Shimano RD-TY300 7spd |
| Freewheel: | Shimano 7spd 14-28T |
| Chainwheel: | Prowheel 170mm Crank, 28x38x48T Chainring |
| Bottom Bracket/Motor | Cartridge BB 68×122.5mm |
| Display | 36V LED Display; on/off, 3 levels of power assistance, battery indicator and “walk assist” button |
| Controller | 36V, Limited to 15.5mph (25kmh) maximum assistance |
| Sensor | 12 point pedal sensor |
| Battery | 36V 10Ah Downtube Battery, with battery indicator |
| Chain: | KMC |
| Charge Time: | 5hrs (but top up as required) |
| Range: | 40-45km |
| Brakes: | Mechanical Disc Brakes, 160mm rotors |
| Brake levers: | Alloy Brake Levers with automatic motor cut-off |
| Pedals: | 9/16” Axle |
| Wheels | |
| Front Hub: | 36H, Alloy |
| Rear Hub: | 36V 250W Motor, 36H Alloy body |
| Rims: | Double Wall Alloy, 27.5″ (disc only) |
| Spokes: | 13G |
| Tyres: | CST 700 x 38C Trekking Tyres |
| Saddle | |
| Seat Post: | Alloy Micro Adjust, 27.2mm x 300mm |
| Saddle: | Dawes Comfort saddle. |
| Other | |
| Accessories | 240V Mains charger, front and rear full length mudugards, rear carrier and Big-foot propstand. |
